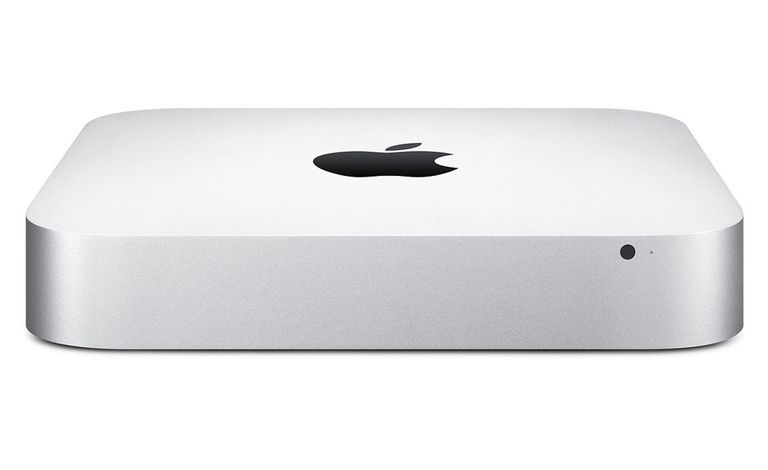

Mac mini (Late 2012) - Technical Specifications
Size and Weight
Height: 1.4 inches (3.6 cm)
Width: 7.7 inches (19.7 cm)
Depth: 7.7 inches (19.7 cm)
Weight: 2.7 pounds (1.22 kg)1
Processor
2.5GHz 2.5GHz dual-core Intel Core i5 (Turbo Boost up to 3.1GHz) with 3MB L3 cache
Storage
2.5 GHz 500GB (5400-rpm) hard drive2
Configurable to a 128 GB, 256GB solid-state drive or 1TB Fusion Drive.
Graphics
Intel HD Graphics 4000
Memory
4GB (two 2GB) of 1600MHz DDR3 memory
Configurable to 8GB or 16GB.
Video Support
Support for up to two displays at 2560 by 1600 pixels, both at millions of colors
Thunderbolt digital video output
Native Mini DisplayPort output
DVI output using Mini DisplayPort to DVI Adapter (sold separately)
VGA output using Mini DisplayPort to VGA Adapter (sold separately)
Dual-link DVI output using Mini DisplayPort to Dual-Link DVI Adapter (sold separately)
HDMI video output
Support for 1080p resolution at up to 60Hz
DVI output using HDMI to DVI Adapter (sold separately)
Audio
Audio line in minijack (digital/analog)
Audio line out/headphone minijack (digital/analog)
HDMI port supports multichannel audio output
Support for Apple iPhone headset with microphone
Built-in speaker
Connections and Expansion
Thunderbolt port (up to 10 Gbps)
FireWire 800 port (up to 800 Mbps)
Four USB 3 ports (up to 5 Gbps)
HDMI port
SDXC card slot
Gigabit Ethernet port
Audio in/out
IR receiver
Communications
Wi-Fi 802.11n Wi-Fi wireless networking;3 IEEE 802.11a/b/g compatible
Bluetooth Bluetooth 4.0 wireless technology
Ethernet 10/100/1000BASE-T Ethernet (RJ-45 connector)
Electrical and Operating Requirements
Line voltage: 100-240V AC
Frequency: 50Hz to 60Hz, single phase
Maximum continuous power: 85W
Operating temperature: 50° to 95° F (10° to 35° C)
Storage temperature: -40° to 116° F (-40° to 47° C)
Relative humidity: 5% to 95% noncondensing
Operating altitude: tested up to 10,000 feet
Typical acoustical performance, sound pressure level (operator position)
